IMPORTANT NOTE: C13 (IEC) AC power cable required, not included.Blackmagic Broadcast Smart Videohub 20×20 – VHUBSMART6G2020 sostituisce VHUB/VS è un Routing Switcher, Ingressi 20 x 6G-SDI / Uscite 20 x 6G-SDI, SD, HD, Ultra HD 4K, & DCI 4K, 4:2:2 e 4:4:4 Sampling, 10-bit Processing, SDI Reclocking, Built-in LCD con Spin Knob Control, Push Buttons sul Front Panel, Ethernet per Remote Control, Videohub Control Software incluso On-screen labels support Unicode for non-Roman character sets (e.g., Chinese, Japanese, Korean, Russian, German, French, Spanish, et al.).

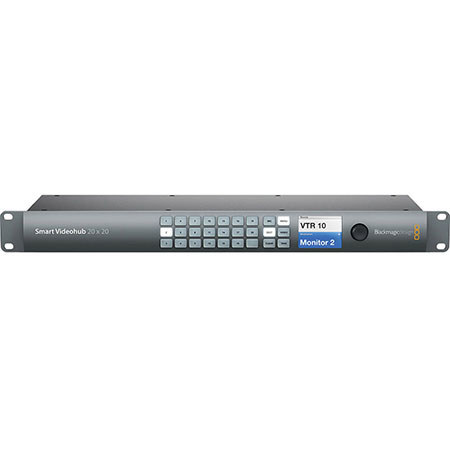

Ethernet control permits direct connection to the computer network (compatible with Videohub Smart Control and Videohub Master Control panels).Videohub control software included for control over Ethernet.Integrated video monitoring & spin knob control.Reference input compatible with black burst and tri-sync.Up to (16) channels of embedded audio on each SDI signal.Auto-detects between SD, HD, Ultra HD 4K, and DCI 4K and instantly switches standards.4:2:2 or 4:4:4 color sampling with 10 bit processing.Supports 8 bit, 10 bit, and 12 bit 4:2:2 and 4:4:4 signals.Integrated SDI reclocking on each SDI input.Also includes Ethernet for remote control and a fully customizable software development kit for Mac and Windows. You also get revolutionary new visual routing with the unique spin knob control, push button panel and the built in LCD screen. Ideal for larger workgroups and mobile broadcasting, it includes advanced 6G-SDI connections so you can simultaneously connect and route any combination of SD, HD and Ultra HD video all on the same router at the same time. The Blackmagic Design 6G-SDI Smart Videohub 20x20 is a larger, advanced Ultra HD mixed format router with built in control panel and monitoring.
